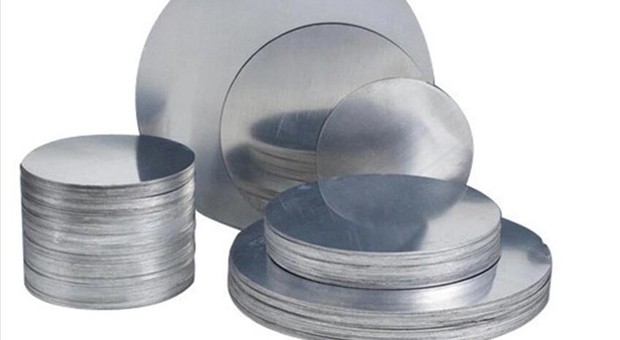

The aluminum circles produced by HAOMEI Aluminum Co. Ltd. Was adopted by CC & DC aluminum coils, thickness range from 0.40mm to 4mm, diameter from 160mm to 1250mm ,Alloy number 1060 ,1100, 3003, 5052 temper H24, H16 of H18, O.Aluminium circle is widely used in many industries including electronics, cosmetics, pharmaceuticals, education, auto parts, electrical appliances, insulation, machinery manufacture, vehicle, space, military, mould, construction, printing, etc. Cookware such as non-stick pans and pressure cookers, hardware such as lamp shades and water heater shell are the largest consumers of aluminium alloy plate and coil.
Chemistry Composition & Mechanical Properties |
Alloy |
Min.AL |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
Ca |
1050 |
99.5 |
0.25 |
0.4 |
0.05 |
0.05 |
0.05 |
--- |
--- |
0.05 |
--- |
1060 |
99.6 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
--- |
--- |
0.05 |
--- |
1070 |
99.7 |
0.25 |
0.25 |
0.04 |
0.03 |
0.03 |
-- |
--- |
0.04 |
--- |
1100 |
99 |
0.95 |
0.95 |
0.05-0.2 |
0.05 |
--- |
-- |
--- |
0.1 |
--- |
TEMPER |
THICKNESS(mm) |
TENSILE STRENGTH |
ELONGATION% |
HO |
0.36-6 |
60-100 |
≥ 20 |
H12 |
0.5-6 |
70-120 |
≥ 4 |
H14 |
0.5-6 |
85-120 |
≥ 2 |
aluminum circle plate
Alloy No. |
Thickness (mm) |
Width (mm) |
Temper |
1050.1060.1070.1100.1235 |
0.5-6.0mm |
180-1200mm |
O H12 H14 H24 H26 H18 |
3003.3005 |
0.5-6.0mm |
180-1200mm |
O H12 H14 H24 H26 H18 |
5052.5005.5083.5754 |
0.5-6.0mm |
180-1200mm |
O H12 H14 H24 H26 H18 |
8011 |
0.5-6.0mm |
180-1200mm |
O H12 H14 H24 H26 H18
|
Quality control of aluminium circle disc:
- A grade pure aluminum ingot for manufacturing, food contact safe;
- High performing properties for deep drawing, spinning, and anodizing process;
- Bright and smooth surface, without bubbles, scratched lines, oil marks, or edge burrs;
- Strong and hard export package for shipping;
Package Details:
Normal seaworthy export package for sheet:
· Waterproof film,kraft paper for interior packaging
· wooden pallet or wooden case for outer packaging
· Considering to reduce the sea freight,we try to use 20 foot container.
