There are many specifications of 5083 aluminium, so the 5083 aluminum plate price depends on the specific specifications and quantity of customers'purchase, as well as the use.

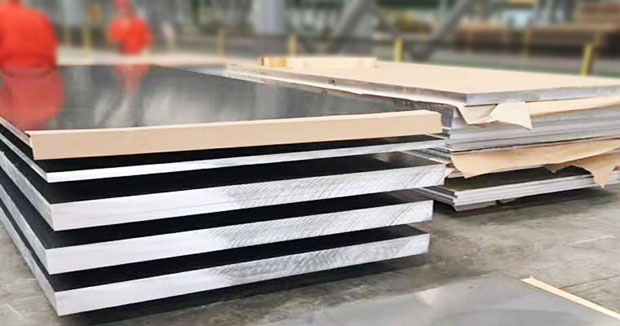

5083 aluminium sheet specification 0.1mm-10mm, small aluminum plate 1000mm*2000mm, large aluminum plate 220mm*1440mm-1500mm*4500
5083 aluminium sheet specification 10mm-450mm, small aluminum board 1000*2000, large aluminum board 1220*2400mm-1500-3000
5083 aluminium bar specification 1.0mm-400mm*2500mm
5083 aluminium tube specification; 5 - 300 square
5083 aluminium row specifications:width 6-450,thickness 6-200 , and complete specification of aluminium tube spot. Provide original material report and SGS/ROHS report. Welcome to inquire.
Introduction of 5083 aluminium alloy:
5083 aluminium plate coils is a typical alloy in AL-Mg rust-proof aluminium. Its characteristics are excellent weldability and corrosion resistance. Processing performance, low temperature performance, etc.
Alloy 5083 aluminium sheet weldability
5083 alloy has good weldability and can be welded by various welding methods. The strength of welded joint can be equal to that of annealed matrix. At the same time, it has good ductility, cold formability and corrosion resistance. With the decrease of temperature, the tensile strength, yield strength and elongation of matrix metal and welded joints increase, and the low temperature toughness is very good.
Corrosion resistance of alloy 5083 aluminium sheet
5083 aluminum alloy has good corrosion resistance in various states. It has good corrosion resistance to atmosphere, fresh water, sea water, alcohol, gasoline and diesel oil, organic acid, concentrated nitric acid and various foods. However, 5083 alloy is prone to stress corrosion cracking (scc). In order to avoid stress corrosion cracking, the working temperature of 5083 alloy should not exceed 65 C.
Chemical composition of 5083 aluminium alloy:
Aluminum Al: Allowance
Silicon Si: <0.40
Copper and copper: <0.10
Magnesium Mg:4.0-4.9
Zinc and zinc: <0.25
Manganese and Manganese: 0.40-1.0
Titanium: <0.15
Chromium chromium: 0.05-0.25
Iron and iron: 0.000-0.400
Note: Individual: <0.05; Total: <0.15
Mechanical properties of 5083 aluminium alloy:
Tensile strength b(MPa): > 270
CONDITIONAL YIELD STRENGTH_0.2 (MPa): > 110
Elongation of 10 (%): 20
Elongation rate (%): > 12
Note: Pipe Longitudinal Mechanical Properties at Room Temperature Sample Size: All Wall Thicknesses
Use of 5083 aluminium sheet alloy:
The main alloying element of 5083 aluminium alloy is magnesium, which has good formability, corrosion resistance, weldability and medium strength. It is used to manufacture aircraft fuel tank, fuel pipe, sheet metal parts of traffic vehicles and ships, meters, street lamp brackets and rivets, hardware products, electrical shell, etc.
