Specification
Alloy: 1100、3003、3004、3005、3105、5182、5002、5005
Thickness: 0.07mm-2.0mm
Width: 30mm-1600mm
Paint: PE, PVDF
Color: white, blue, red, green, brown, copper, bronze, wood grain, stone grain, black
Paint side: single, double
Coating thickness: single-layer 4-20micron; double-layer 25-28micron; three-layer 35-38um
Classification
1. Paint: Because the paint applied on the surface is divided into polyester (PE) coated aluminum coil and fluorocarbon (PVDF) coated aluminum coil; epoxy roller coated aluminum coil. Of course, there are cases where one side is coated with fluorocarbon and the other side is coated with polyester; even there are cases where both sides are coated with fluorocarbon;
2. Thickness: Because of the thickness of the coating, it can be divided into single coating (4-20 microns); double coating (25-28 microns); 3 coating (35-38 microns);

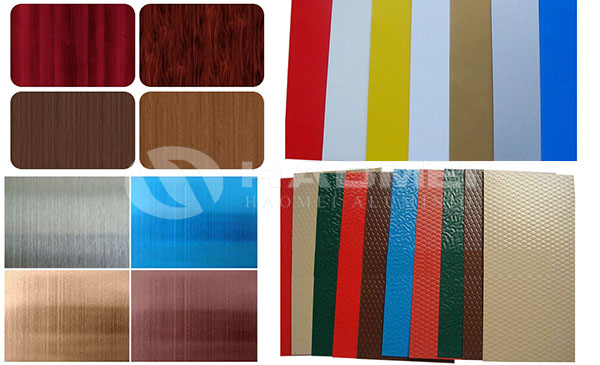

3. Surface design and color: Because of the pattern on the surface, it has also become wood grain aluminum coil and stone grain aluminum coil;
4. Embossed pattern: After being embossed, the pre painted aluminium sheet also becomes an embossed aluminum sheet. Patterns include stucco, diamond and map pattern. The width of the painted embossed aluminum coil sheet can reach 1300mm and the thickness can reach 1.2mm.
5. Application: By uses painted aluminium sheets fall on roofing materials (aluminum magnesium manganese roofing systems), ceiling materials (for aluminum alloy ceilings), household electrical panels (used in the interior decoration of household appliances, in line with the EU Rohs standard), food materials (food-grade chromization and roller coating, in line with the US FDA standard), wire drawing brushed sheets (surface after wire drawing treatment), etc.
Application
Pre painted aluminum sheet metal covers a wide range of applications: construction (roofing materials, wall materials, aluminum-plastic panels, aluminum honeycomb panels, fire-resistant plywood panels, aluminum ceilings, shutters, roller shutter doors, garage doors), electronic appliances (computer cases, electrical panels), lighting , Furniture, luggage, can lid materials, etc.
Advantages over other painted aluminum sheet metal suppliers
1. Advanced equipment. Haomei has a large ultra-wide aluminum roll coating line with a maximum width of 2400mm and a line speed of 30 meters per second, providing new options for various composite sheet and vehicle manufacturing industries.
2. High annual output and long-term inventory.
3. Product styles are rich, including fluorocarbon coated aluminum sheet coil (board), polyester coated aluminum sheet coil (board); peelable painted aluminum sheet coil (board); nano anti-dirt self-cleaning pre-painted aluminum sheet coil (board); high Scratch-resistant coated aluminum coil sheet (board); coated embossed aluminum coil sheet (board), etc.,
4. Complete specifications, can produce various specifications, alloy coated (color) aluminum coil, such as 1100, 3003, 3004, 3005, 3105, 5182, 5002, 5005, etc., coating thickness 0.07mm-2.0mm; width up to 1600mm, and the painted aluminium sheets can be divided into pieces of required sizes.
