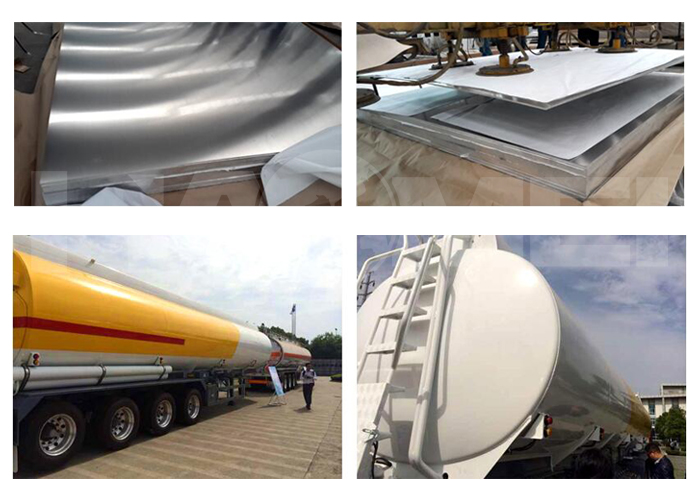

Haomei 5454 Alloy Aluminium Plate enjoy excellent corrosion resistance and welding performance, with wide application in marine, automotive, railway transportation, oil and chemical industiral etc. Haomei aluminium is able to offer 5083T, 5182T and 5454T aluminium plate which is used for oil tank body, and pressure container body.
Haomei 5454 Oil tanker Aluminium alloy plate features:
Large specification.
Medium strength
Quality surface
High formability.
Excellent corrosion resistance
Excellent welding performance
Oil tanker Aluminium alloy plate Product Parameter
Chemical Composition |
|||||||||
Alloy series |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
|
5083T |
Min. |
- |
- |
- |
0.40 |
4.0 |
0.05 |
- |
- |
Max. |
0.40 |
0.40 |
0.10 |
1.0 |
4.90 |
0.25 |
0.25 |
0.15 |
|
5182T |
Min. |
- |
- |
- |
0.20 |
4.0 |
- |
- |
- |
Max. |
0.20 |
0.35 |
0.15 |
0.50 |
5.0 |
0.1 |
0.25 |
0.1 |
|
5454T |
Min. |
- |
- |
- |
0.5 |
2.4 |
0.05 |
- |
- |
Max. |
0.25 |
0.40 |
0.10 |
1.0 |
3.0 |
0.20 |
0.25 |
0.20 |
Oil tanker Aluminium plate Specification
Alloy Series |
Thickness(mm) |
Width(mm) |
Length(mm) |
|
5083T |
Min. |
4 |
1000 |
2000 |
Max. |
8 |
2400 |
12600 |
|
5182T |
Min. |
4 |
1000 |
2000 |
Max. |
8 |
2400 |
12600 |
|
5454T |
Min. |
4 |
1000 |
2000 |
Max. |
8 |
2400 |
12600 |
Oil tanker Aluminium plate Mechanical Property
Alloy Series |
Temper |
Yield Strength |
Tensile Strength Rm(Mpa) |
Elongation A(%) |
5083T |
O, H111, |
≥125 |
270-350 |
≥15 |
5182T |
O, H111 |
≥110 |
255-315 |
≥16 |
5454T |
O, H111, |
≥85 |
215-275 |
≥17 |
