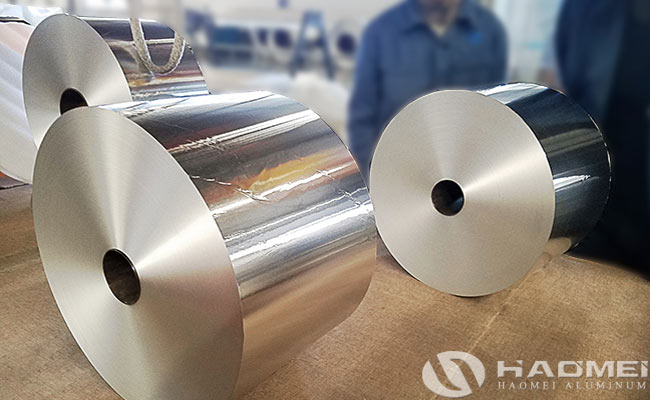

- 18 Micron Aluminium Foil Jumbo Roll
- As a leading Chinese manufacturer deeply rooted in the aluminum foil industry, Haomei Aluminum's 18 micron aluminium foil jumbo rolls have obtained ISO9001, FDA, and EU FCM certifications. Exported annually to over 30 countries worldwide, they are widely used in core sectors such as food processing, pharmaceutical packaging, and industrial manufacturing, earning consistent international market recognition for their stable quality.
Our 18 micron aluminum foil rolls (0.018mm) use 8011-H18 alloy as the main material, supplemented by customized grades such as 1235 and 1060. Widths range from 100-1700mm, roll diameters can reach 1200mm, and single roll weights can reach up to 2500kg, meeting the needs of large-scale industrial production. Key technical specifications are as follows:
Thickness tolerance: ±2% (high precision), exceeding the ±5% requirement of national standard GB/T 8073-2012.
- Surface quality:
Pinhole rate <0.3 pins/m², free from oil stains, oxidation, and color difference; single-sided/double-sided glossy finish available.
- Mechanical properties:
Tensile strength 120-150MPa, elongation ≥6%, ensuring processability and formability.
- Hygiene standards:
Heavy metal leaching complies with GB 4806.9-2023 and EU 1935/2004 regulations, suitable for direct food contact.
The stable quality of our 18-micron aluminum foil rolls stems from our years of dedicated research into core production technologies and meticulous end-to-end control. Every process has been validated in practice and continuously optimized, ensuring full control from raw materials to finished products.
- Raw Material Control:
≥99.7% high-purity aluminum ingots are used, filtered through an online degassing and filtration system (Alpur and plate-and-frame filters), controlling the hydrogen content to below 0.12ml/100gAl to avoid pinholes and bubbles.
- Double-Layer Rolling:
A unique four-roll reversible cold rolling + double-layer precision rolling process is employed. Imported food-grade base oil and composite additives are used in the rolling oil, with a rolling speed of up to 800m/min, ensuring uniform thickness and surface finish.
- Precision Annealing:
An air-cushion continuous annealing furnace is used, with temperature control accuracy ±1℃. The annealing state can be adjusted to O (soft) or H18 (hard) according to customer requirements to eliminate work hardening and balance strength and plasticity.
- Online Inspection:
Equipped with an X-ray thickness gauge (accuracy 0.1μm), shape gauge, and surface defect detector, 100% online monitoring is achieved. The key parameter CpK > 1.67, ensuring batch stability.
- Large Roll Packaging:
Utilizing five layers of protective packaging (inner paper + PE film + moisture-proof paper + galvanized iron sheet + wooden pallet), vacuum sealed, humidity controlled ≤30% RH, suitable for ocean shipping, and has passed 100,000+ kilometers of transportation verification.
Based on precise process control and scientific product design, 18-micron aluminum foil large rolls possess multiple advantages in strength, barrier properties, processability, and cost-effectiveness, perfectly adapting to the large-scale production needs of multiple industries, distinguishing them from ordinary aluminum foil products.
- Strength and Toughness Balance:
The 18-micron thickness falls within the golden range of "household thin foil" (9-16μm) and "industrial thick foil" (25μm+), combining tear resistance and ease of processing, suitable for deep drawing, folding, and lamination processes.
- Excellent barrier properties:
Oxygen permeability <0.5cm³/(m²·24h·0.1MPa), water vapor permeability <0.3g/(m²·24h), effectively extending the shelf life of food and reducing the oxidation risk of pharmaceutical products.
- Strong processing adaptability:
Supports secondary processing such as printing, gluing, laminating, and slitting, compatible with high-speed packaging lines (up to 600 packs/minute), and has passed equipment compatibility tests by international chains such as McDonald's and Starbucks.
- Significant cost-effectiveness:
Large roll design (2000-2500kg/roll) reduces roll change frequency, lowers labor and downtime costs, and increases production efficiency by 35% compared to small roll packaging, while reducing overall costs by 12-18%.
With its superior product characteristics and stable quality, 18-micron aluminium jumbo foil rolls have been widely used in food, pharmaceuticals, industrial manufacturing, and other fields, accumulating numerous cooperation cases with globally renowned companies and adapting to the personalized needs of different industries.
- Food Industry:
Used in vacuum packaging of meat (Tyson Foods, USA), baking mats (certified by the German Baking Association), and sealed films for cooked food, with a temperature range of -20℃ to 220℃, suitable for both freezing and baking applications.
- Pharmaceutical Packaging:
Used as a substrate for blister packaging aluminum foil, laminated with PVC and PVDC, meeting the YBB 00152002 pharmaceutical standard, and supplied to companies such as Sun Pharmaceuticals (India) and Bayer (Germany).
- Industrial Manufacturing:
Used for aluminum cladding insulation of air conditioning refrigerant pipes (a designated supplier for Midea and Gree), lithium battery pouches, and shielding layers for electronic components, possessing excellent thermal conductivity and electromagnetic shielding properties.
- Catering Services:
Large rolls are slit into disposable lunch boxes and foil trays, suitable for central kitchens in chain restaurants, and exported to catering supply chain companies in Southeast Asia, the Middle East, and Africa.
As a manufacturer with an annual production capacity of 100,000 tons of aluminum foil, our 18-micron aluminium foil roll production line is equipped with 12 high-precision rolling mills and 6 annealing lines, achieving an annual capacity of 30,000 tons. Order delivery time is controlled within 15-20 days. For the export market, we offer:
- Customized packaging:
Compliant with EU REACH, US FDA, and Middle East SASO certification requirements
- Logistics optimization:
Departing from Tianjin/Qingdao ports, supporting LCL/FCL transportation, and providing full logistics tracking
- Technical support:
Engineers assist customers with secondary processing and debugging such as slitting and lamination.
Haomei Aluminum 18 micron aluminum foil jumbo rolls, with precision manufacturing, stable quality, and global service, are your reliable partner for industrial production. We always focus on technology and quality, leveraging years of production and export experience to provide customized, cost-effective aluminum foil solutions for global customers, helping them improve production efficiency and reduce costs.
